Energy - Saving Self - Ventilated Air - Cooled Squirrel - Cage Three - Phase Asynchronous Motors for Conveyance

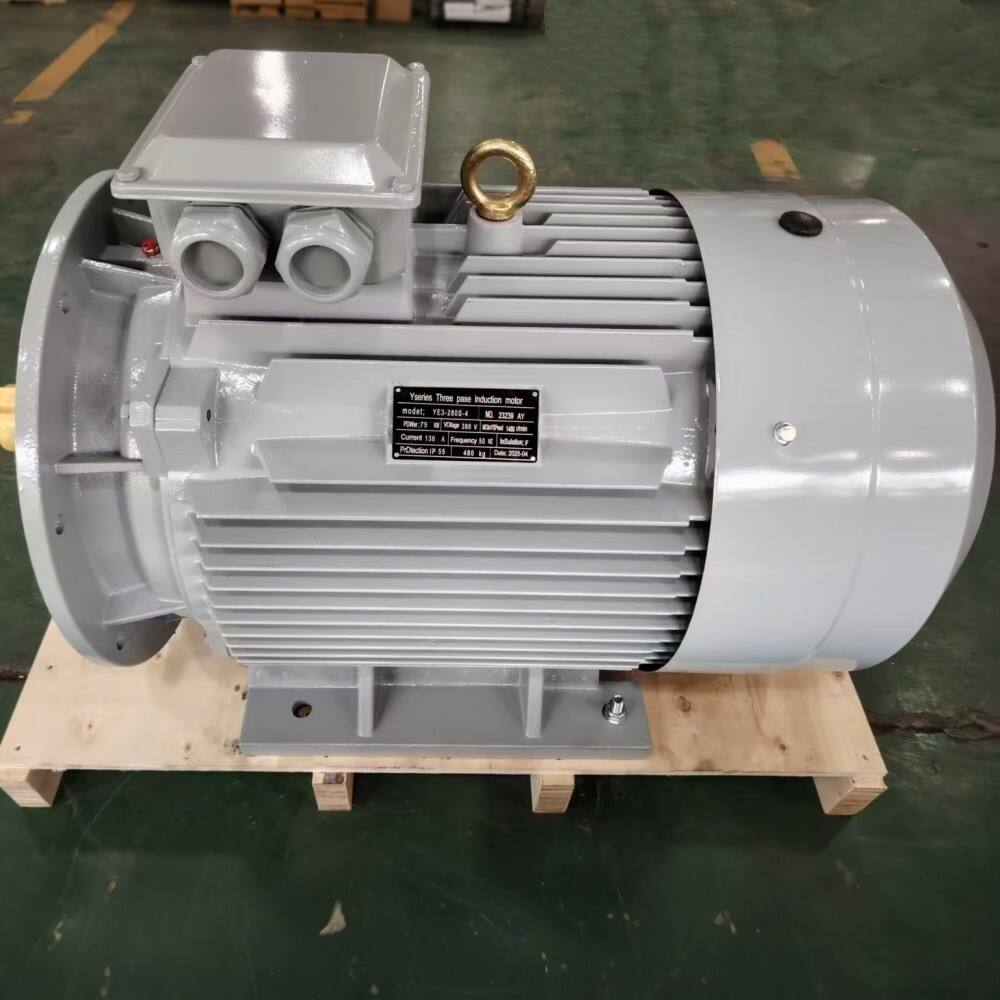

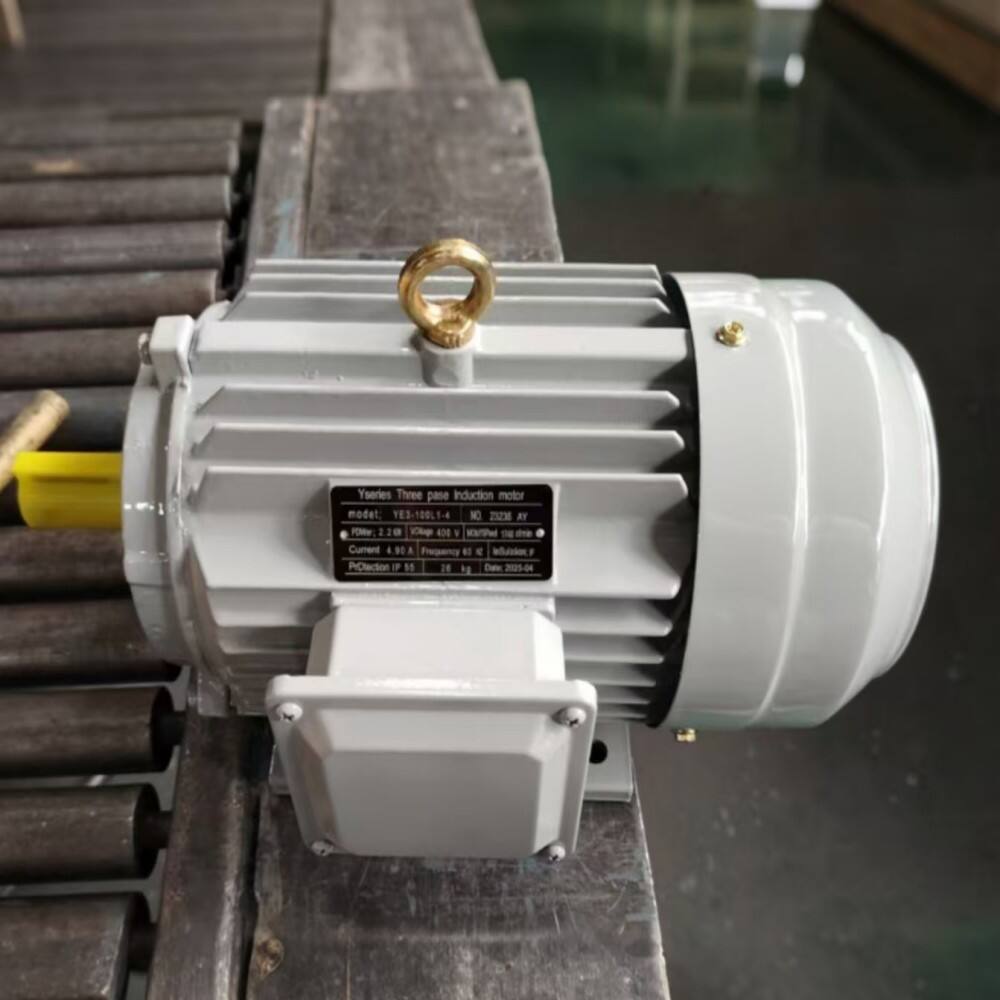

The YE3 series is a fully enclosed self - fan air - cooled squirrel cage three - phase asynchronous motor developed by our company based on GB/T 28575 - 2020. The efficiency index of this series of motors reaches the third level energy efficiency level in Chinese GB 18613 - 2020, and complies with IE3 in the energy efficiency level of IEC 60034 - 30 - 1, which is at the same level as the internationally advanced NEMA high - efficiency motor in the United States.
- Overview
- Recommended Products
YE3 series motors have lots of features such as better premium efficiency and energy saving than YE2/IE2 series, excellent performance, low noise and vibration, high reliability, easy operation and etc. Moreover, YE3 series motors have the same dimensions and output power as YE2/IE2 series, which follows IEC 60072 - 1. Therefore, YE3 series can replace YE2/IE2 series directly, achieving the purpose of energy saving. Motors can be equipped with oil - changing devices without stopping, and reserve the space for thermistors and heaters to facilitate users' operation.
Specifications：
| Brand Name | LEEJAJN |
| Type | Asynchronous Motor |
| Phase | Three - phase |
| Efficiency | IE3 |
| Model Number | YE3- 63M1- 2—YE3 - 4504 - 10 |
| AC Voltage | 380V/customized |
| Power | 0.18-1000kw（Customized） |
| Synchronous speed | 600/750/1000/1500/3000rpm |
| Frequency | 50HZ/60HZ/Customized |
| Material | Copper Core |
| Insulation class | F/H |
| Insulation class | Iron Cast |
| Power input position | Upper/Flank |
| duty type | S1(24-hour duty system) |
| Place of Origin | Zhejiang, China |
| Protect Feature | Totally Enclosed |
| Protection class | IP55 |
| MOTOR BEARINGS | NSK/SKF/C & U |
| Color | Raul color7038/Can be customized |
| Ambient temperature | -15°C≤0≤40°C |
| Cooling method | IC411 |
| Warranty | 1years |
FAQ：
Q1: Do you offer OEM Service?
A: Yes. We offer OEM service.
